1064nm拉曼激光器

1064nm拉曼激光器

NBET-III-1064/250~1000mW

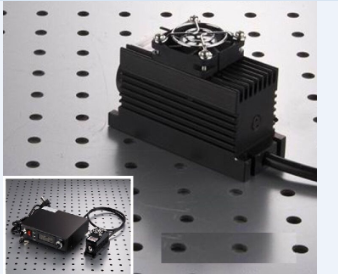

SINGLE LONGITUDINAL MODE INFRARED LASER AT 1064nm

All solid state single longitudinal mode infrared laser at 1064nm is made features of ultra compact, long lifetime, low cost and easy operating, which is used in DNA sequencing, flow cytometry, cell sorting, optical instrument, spectrum analysis, interference, measurement, holography, physics experiment, etc.

技術參數

Wavelength (nm) 1064±1

Operating mode CW

Output power (mW) 250,300,400,…1000

Power stability (rms, over 4 hours) <1%, <3%, <5%

Transverse mode TEM00

Longitudinal mode Single

Spectral linewidth (nm) <0.00001

Coherent length (m) >50

Noise of amplitude (rms, 1Hz~20MHz) <1%typical0.5%

M2 factor <1.5

Beam diameter at the aperture (1/e2, mm) <2.0

Beam divergence, full angle (mrad) <1.5

Warm-up time (minutes) <10

Pointing stability after warm-up (mrad) <0.05

Beam height from base plate (mm) 24.8

Operating temperature (℃) 15~35

Power supply (90-264VAC) PSU-H-FDA

Expected lifetime (hours) 10000

Warranty 1 year

選型指南

NBET-FN-360nm	360nm半導體激光器，數顯可調。
NBET -III-400/405/410/415nm	400nm半導體激光器，數顯可調。
NBET-III-532nm	532nm半導體激光器，數顯可調。
NBET-F-532nm	532nm半導體激光器，數顯可調。
NBET-FN-532nm	532nm半導體激光器，數顯可調。
NBET-D-785nm	785nm半導體激光器，數顯可調。
NBET-III-1064nm	1064nm半導體激光器，數顯可調。

上一篇： 785nm拉曼激光器
下一篇：405nm熒光激光器　
